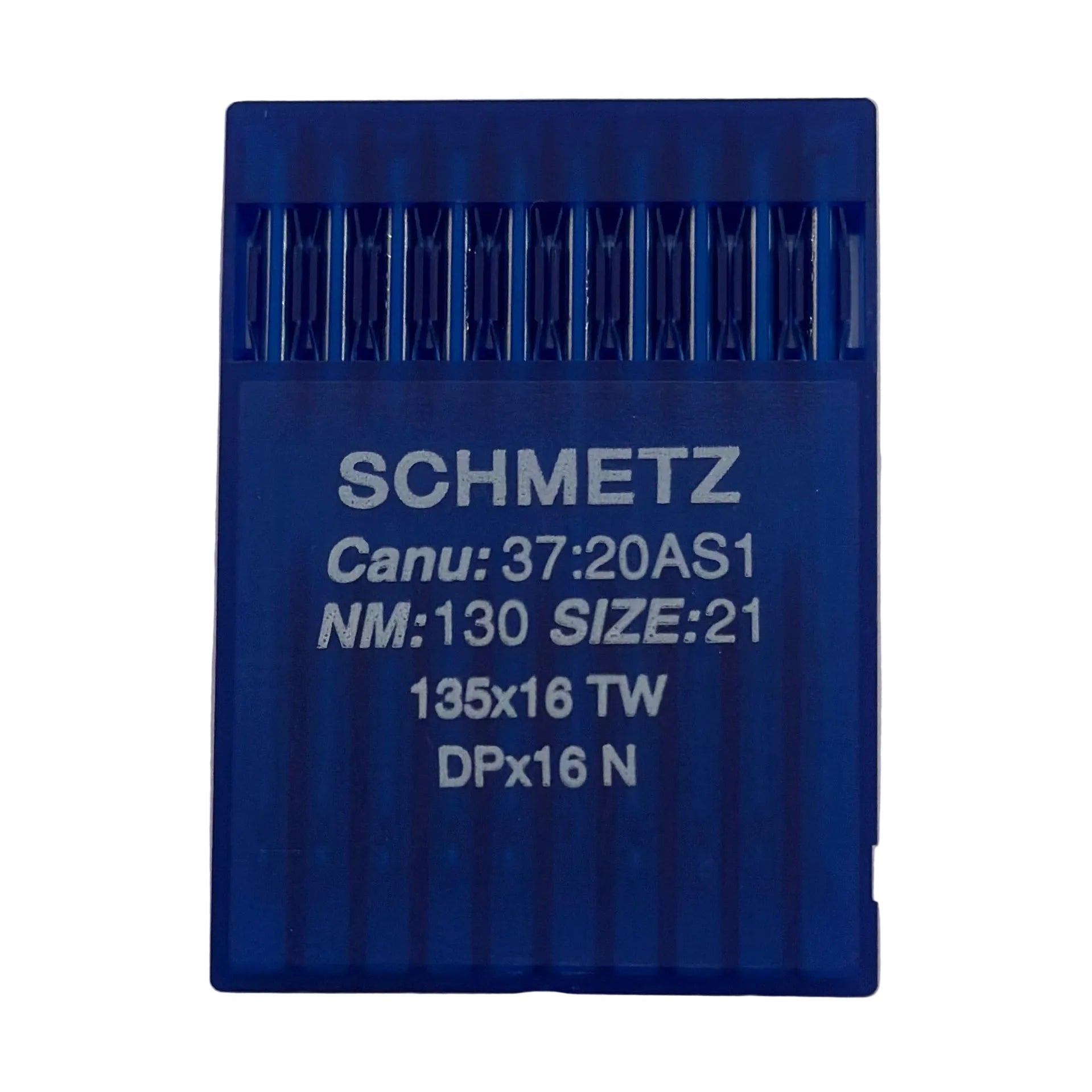

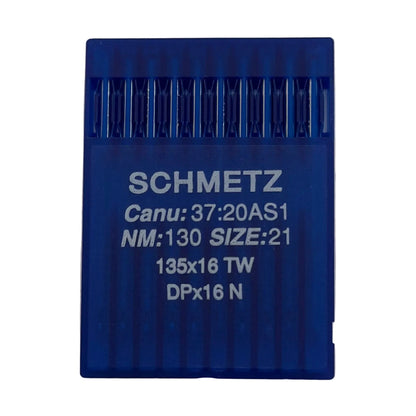

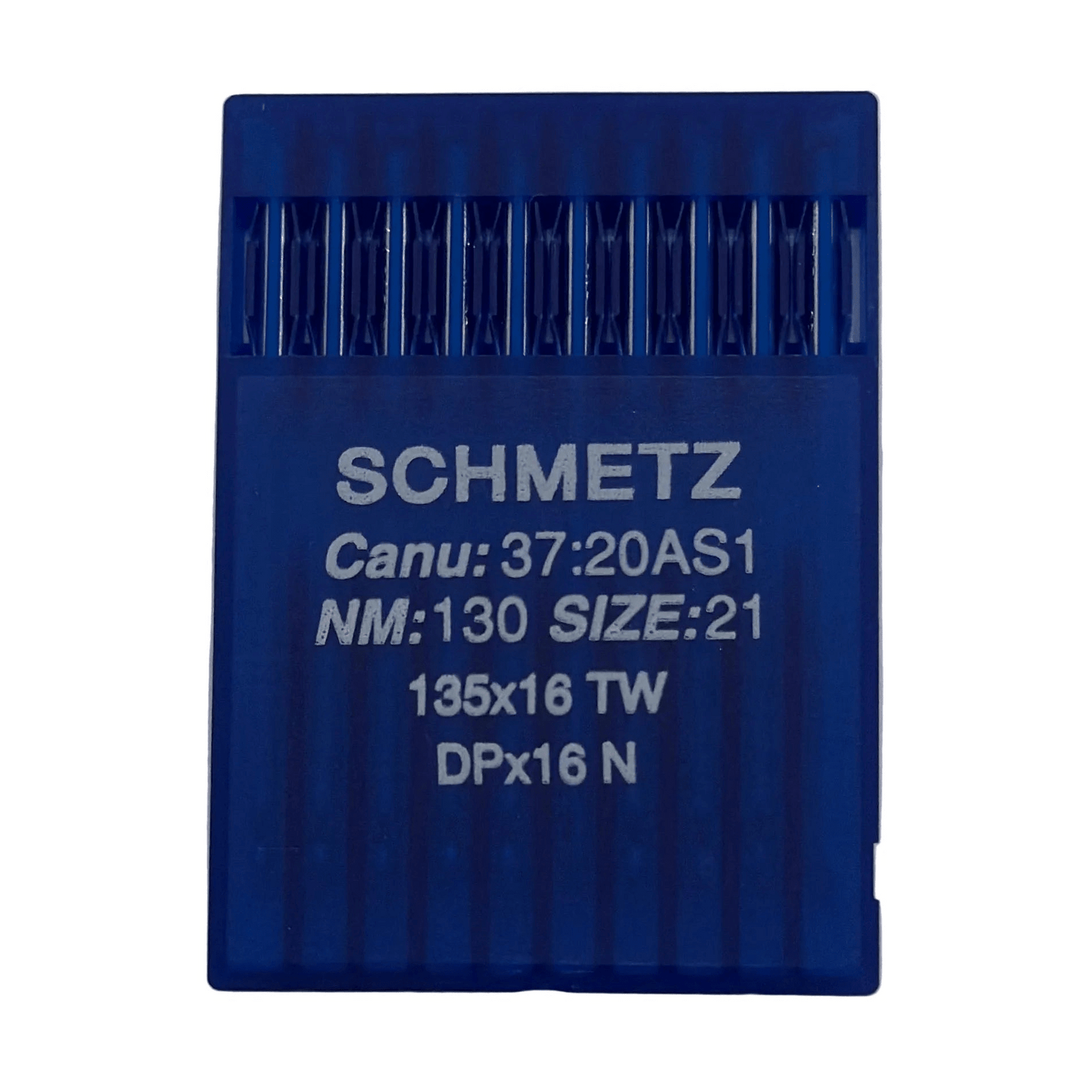

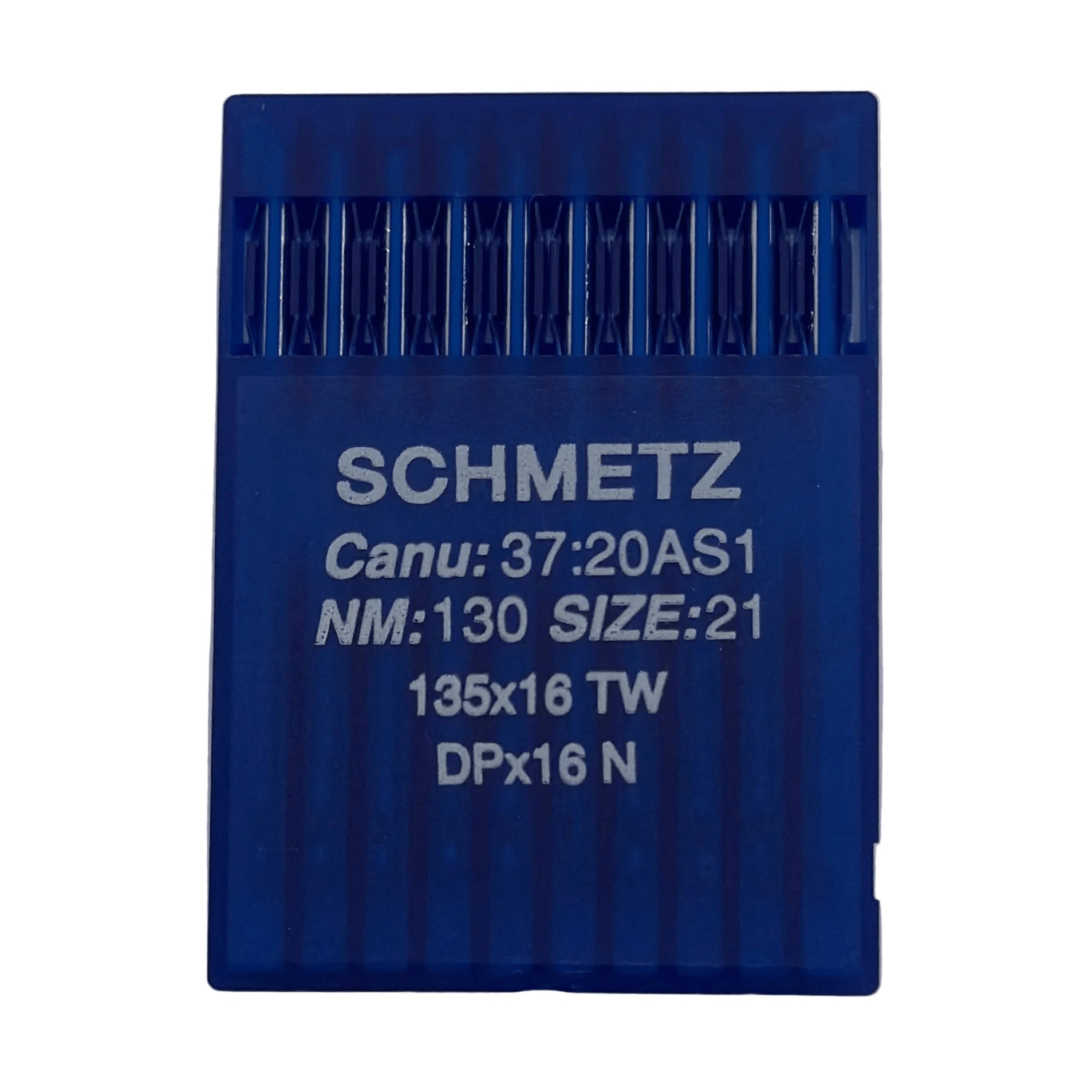

Industrial sewing machine needles SCHMETZ DPx17 (135x17) S for leather - 10 pcs.

SCHMETZ DPx17 S and also known as 135X17 S, SY 3355 S, 135X16 TW, DPX16 are industrial sewing machine needles for leather with an S (Narrow Cross Point) point. This needle point creates a very straight, clean stitch because the cut into the material is made perpendicular to the direction of the thread. Ideally suited for precise seams on leather without tearing the material. Chrome coating provides reduced friction and higher durability for heavy-duty use.

🧵 Suitable materials

• Natural and synthetic leather
• Leather goods with multiple layers
• Textiles combined with leather (linings, bags, accessories)
• Car upholstery, bag components, belts

✨ Where the S needle shines

• Very straight, visually clean seams – suitable for both durability and design
• Bags, belts, wallets and other leather accessories
• Footwear and leather goods manufacturing
• Sewing car seats and other thicker materials

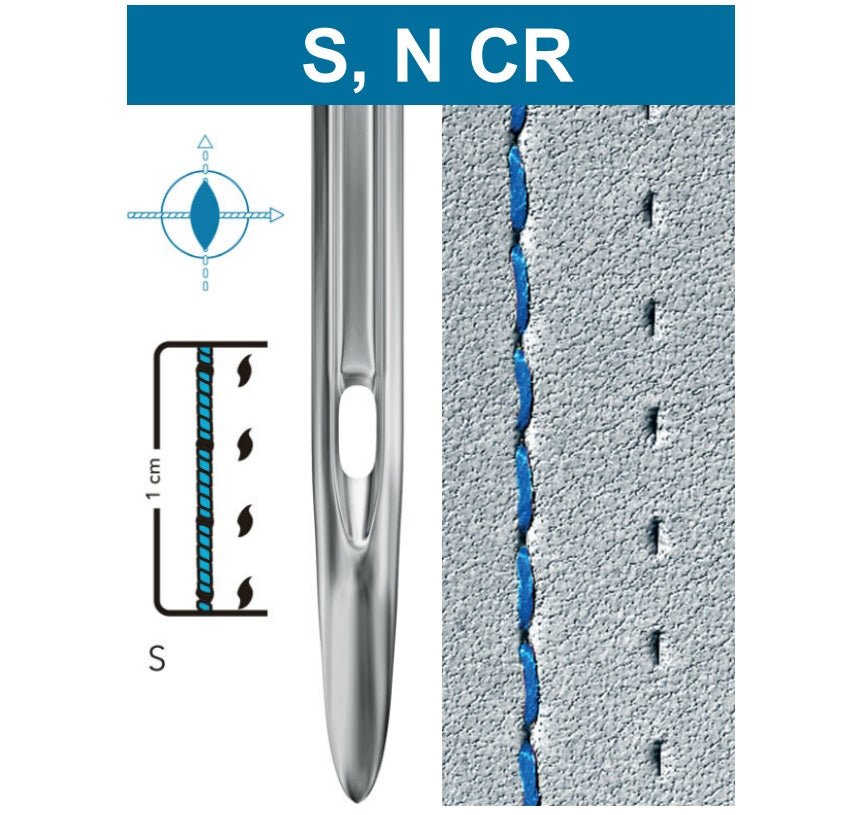

🎯 Advantages of S (Narrow Cross Point)

• Very straight stitch line – without lateral skew
• Clean cut – does not pull or tear the leather
• Great for coarse, pronounced decorative stitches
• Stable penetration even in thicker materials

🧶 Recommended threads for leather

Choose the needle size and thread thickness according to the material's thickness.

🔧 Compatibility

Fits industrial lockstitch machines that use 135X17, SY 3355, DPX17, 135X16 TW, DPX16 N series needles.

Needle systems (equivalents): 135X17 S, SY 3355 S, DPX17 S, 135X16 TW, DPX16

📐 Technical data

• CANU: 37:20AS1

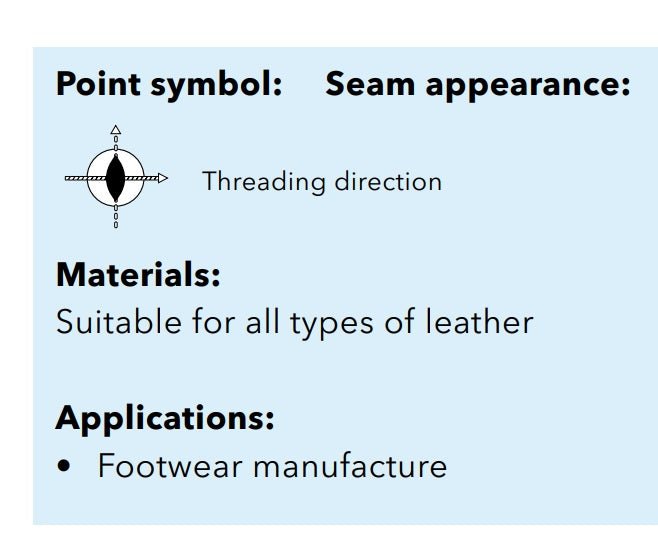

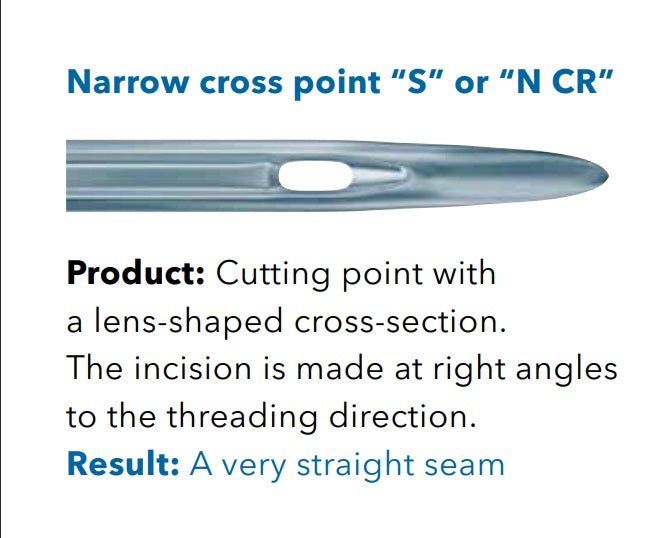

• Point type: S – Narrow Cross Point (very straight cut)
• Coating: Chrome
• Shank Ø: 2.0 mm
• Total length: 44.0 mm
• Length to eye: 38.9 mm
• Shank flat: none (without flat)
• Blade shape: straight
• Number of grooves: 1
• Stitch type: Lockstitch
• Packaging: 10 needles

ℹ️ Note

The visual appearance of seams in the images refers to machines with side thread take-up. On machines with front take-up the seam effect may differ slightly. If a slanted stitch is required, choose an LR or LL point.

✅ Why these needles?

• Perfect for straight, pronounced seams on leather
• Very durable, suitable for extended industrial sewing
• Compatible with all popular DPX17, 135X17, SY 3355, 135X16 TW, DPX16 N series lockstitch machines
